Description

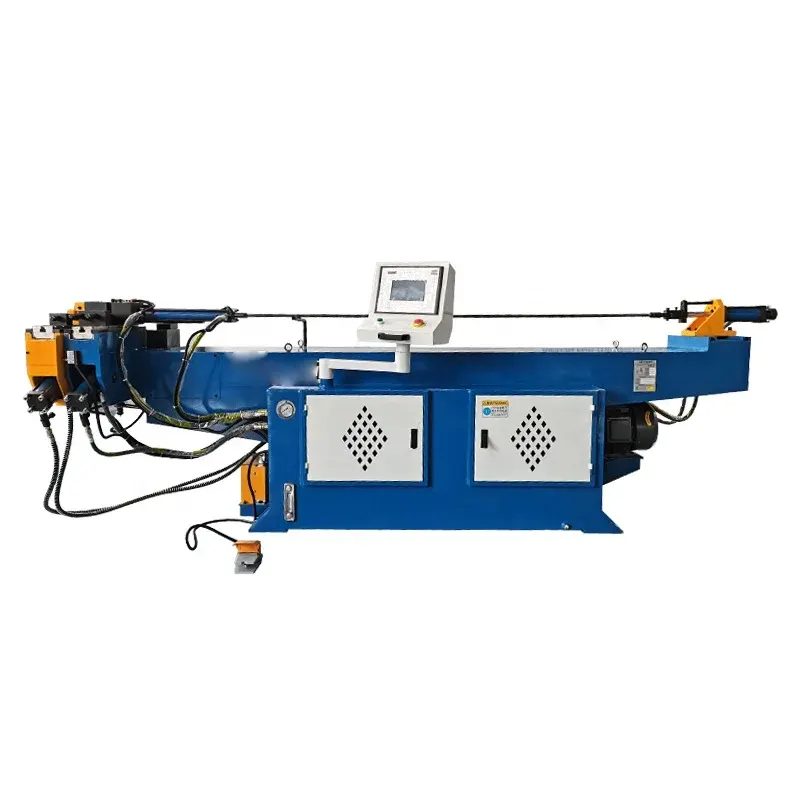

Our CNC Square Tubing Pipe Bending Machine is a semi-automatic, hydraulic powered machine designed to bend a variety of materials with precision and ease. It’s an ideal solution for industries such as building material shops, machinery repair shops, manufacturing plants, retail, construction works, and advertising companies.
Product Features and Uses
The CNC Square Tubing Pipe Bending Machine offers a variety of features that make it easy to operate and highly efficient. It processes a variety of materials including stainless steel, aluminum, carbon steel, copper, aluminium, galvanized, and more.
Main Features
- Semi-automatic operation for optimum efficiency
- Hydraulic power for smooth processing
- End forming for added versatility
- Bends up to a maximum angle of 190 degrees with a bending precision of 1 degree
- Lightweight design with a weight of just 500 KG
Uses
This machine is perfect for businesses that require precise bending of pipes and tubes. It’s widely used in various industries including building material shops, machinery repair shops, manufacturing plants, and more.
Specification Parameters
Our CNC Square Tubing Pipe Bending Machine comes with a comprehensive range of specifications. Here are the key details:
| Main Technical Parameter | Unit | 18NCB | 28NCB | 38NCB | 50NCB | 63NCB |
| Max. Bending Capacity | mm | 18×2 | 28×2 | 38×2 | 50×2 | 63×4 |
| Bending Radius Region | mm | 20-150 | 20-180 | 20-200 | 20-250 | 25-350 |
| Bending Angle Region | Degree | 0-190° | 0-190° | 0-190° | 0-190° | 0-190° |
| Effective Length Over Mandrel | mm | 2000 | 2000 | 2000 | 2200 | 2500 |
| Oil Pressure System Motor | kw | 2.2 | 2.2 | 4 | 5.5 | 7.5 |
| Max. Pressure | kg/cm | 160 | 160 | 160 | 160 | 160 |
| Machine Dimension | mm | 2300×550×1300 | 2500×650×1300 | 2500×700×1300 | 3000×700×1300 | 3200×750×1300 |
| Machine Weight | kg | 500 | 600 | 750 | 1220 | 1400 |
Working Principle and Structure
The CNC Square Tubing Pipe Bending Machine is driven by a hydraulic system. It utilizes a PLC control system for easy, precise bending. The machine incorporates advanced technology, such as cold bending, for the efficient processing of metal pipes.
Mechanical Structure
The machine is equipped with a motor and a PLC control system. The core components are designed for longevity and consist of high-quality materials. The machine is also fitted with electrical parts from Schneider, France, ensuring reliable operation.
Working Process and Operation
The working process begins by setting the desired bending angle on the control panel. The hydraulic system then powers the bending process. With its semi-automatic operation, the machine is easy and stable to operate, ensuring precise bending every time.
Product Advantages
The CNC Square Tubing Pipe Bending Machine offers several advantages that make it a top choice for businesses.
- Precision: These machines provide precise bending angles and measurements, ensuring accuracy and consistency in production.
- Efficiency: They automate the bending process, increasing the speed of production and reducing manual labor.
- Versatility: Bending machines can work with various materials, such as metal, plastic, and wood, making them adaptable to different manufacturing needs.
- Cost-effective: They can significantly reduce material waste by accurately bending components, leading to cost savings.
- Complex Shapes: These machines can create intricate and complex shapes that might be challenging or impossible to achieve manually.
- Customization: They allow for customization, enabling manufacturers to meet specific design requirements and produce unique components.
- Safety: Automated bending machines often come with safety features that protect operators from accidents, enhancing workplace safety.
- Adaptability to Volume: Whether for small-scale or mass production, bending machines can be adjusted to handle varying production volumes efficiently.
Why Choose Our CNC Square Tubing Pipe Bending Machine
At our company, we specialize in producing high-quality bending equipment, excelling in both research and development as well as manufacturing. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.
We encourage you to explore our CNC Square Tubing Pipe Bending Machine and invite you to contact us for any inquiries or purchases. With our commitment to quality and customer satisfaction, we assure you, our product will exceed your expectations.
Frequently Asked Questions
1. What materials can the CNC Square Tubing Pipe Bending Machine process?
The machine can process a variety of materials including stainless steel, aluminum, carbon steel, copper, aluminium, galvanized, and more.
2. What is the maximum bending angle of the machine?
The machine can bend up to a maximum angle of 190 degrees with a bending precision of 1 degree.
3. What industries can benefit from this machine?
The machine is perfect for businesses that require precise bending of pipes and tubes. It’s widely used in various industries including building material shops, machinery repair shops, manufacturing plants, and more.
